Terminal Fuzz
Based on the EarthQuaker Devices Terminal Fuzz· 5 other boards clone it
- Category
- Fuzz
- Price
- see vendorin stock
- Tags
- EQD, EQD, Fuzz
From the vendor
Terminal Fuzz is a devastating (for neighbors' ears) and mind-blowing (for you and your listeners) device, which is based on the scheme of our beloved JAX Fuzz. For those who don't know: JAX Fuzz is a remake of the very cool Shin Ei Companion fuzz, famous for its powerful and psychedelic buzz. Terminal Fuzz takes this time-tested circuitry to the next level, adding the ability to fine-tune gain, tonal features, and volume boost. The unique Voice knob controls the upper and lower mids, which determines the overall character of the sound, and Treble controls the high, which makes your fuzz either fat or very biting. The fuzz control covers a very wide range of distortions, from aggressive crunch to bold metallic clang. All three controls work closely with each other, which allows you to get the widest palette of fuzz shades from one small box. In addition, terminal fuzz works great with bass guitar too.

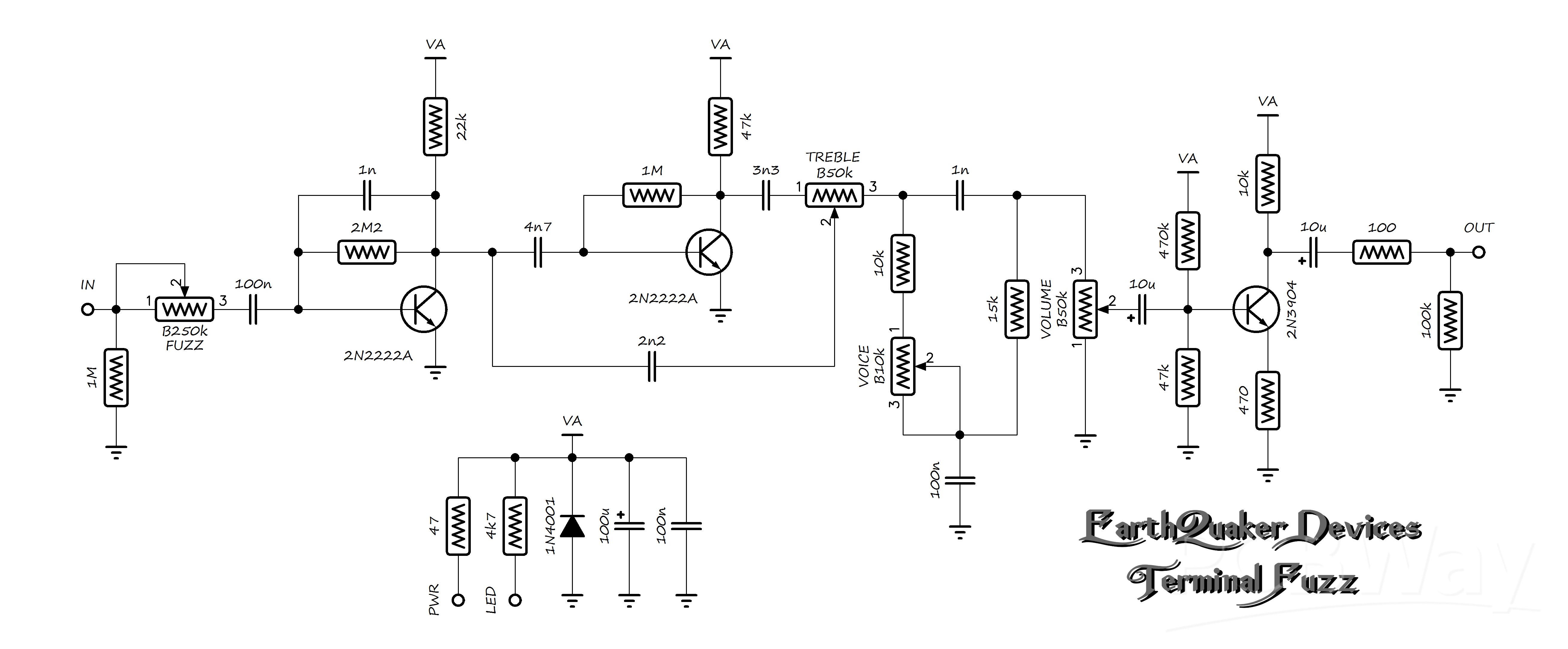

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 26 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 12 | ||||
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×2 | 10k | 10k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 15k | 15k | read from the schematic by eye | |
| ×1 | 470k | 470k | read from the schematic by eye | |
| ×1 | 470 | 470 | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 47 | 47 | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED current limiter; read from the schematic by eye | |
| Capacitors 7 | ||||
| ×3 | 100n | 100n | read from the schematic by eye | |
| ×2 | 1n | 1n | read from the schematic by eye | |
| ×2 | 10u | 10u | read from the schematic by eye | |
| ×1 | 4n7 | 4.7n | read from the schematic by eye | |
| ×1 | 3n3 | 3.3n | read from the schematic by eye | |
| ×1 | 2n2 | 2.2n | read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N4001 | 1N4001 | shunt polarity protection; read from the schematic by eye | |
| Transistors 2 | ||||
| ×2 | 2N2222A | 2N2222A | read from the schematic by eye | |
| ×1 | 2N3904 | 2N3904 | output buffer; read from the schematic by eye | |
| Potentiometers 4 | ||||
| Fuzz | B250k | B250k | Potentiometer | read from the schematic by eye |
| Treble | B50k | B50k | Potentiometer | read from the schematic by eye |
| Voice | B10k | B10k | Potentiometer | read from the schematic by eye |
| Volume | B50k | B50k | Potentiometer | read from the schematic by eye |
