Enclosure not stated · 6 knobs

Talons

Based on the EarthQuaker Devices Talons· 9 other boards clone it

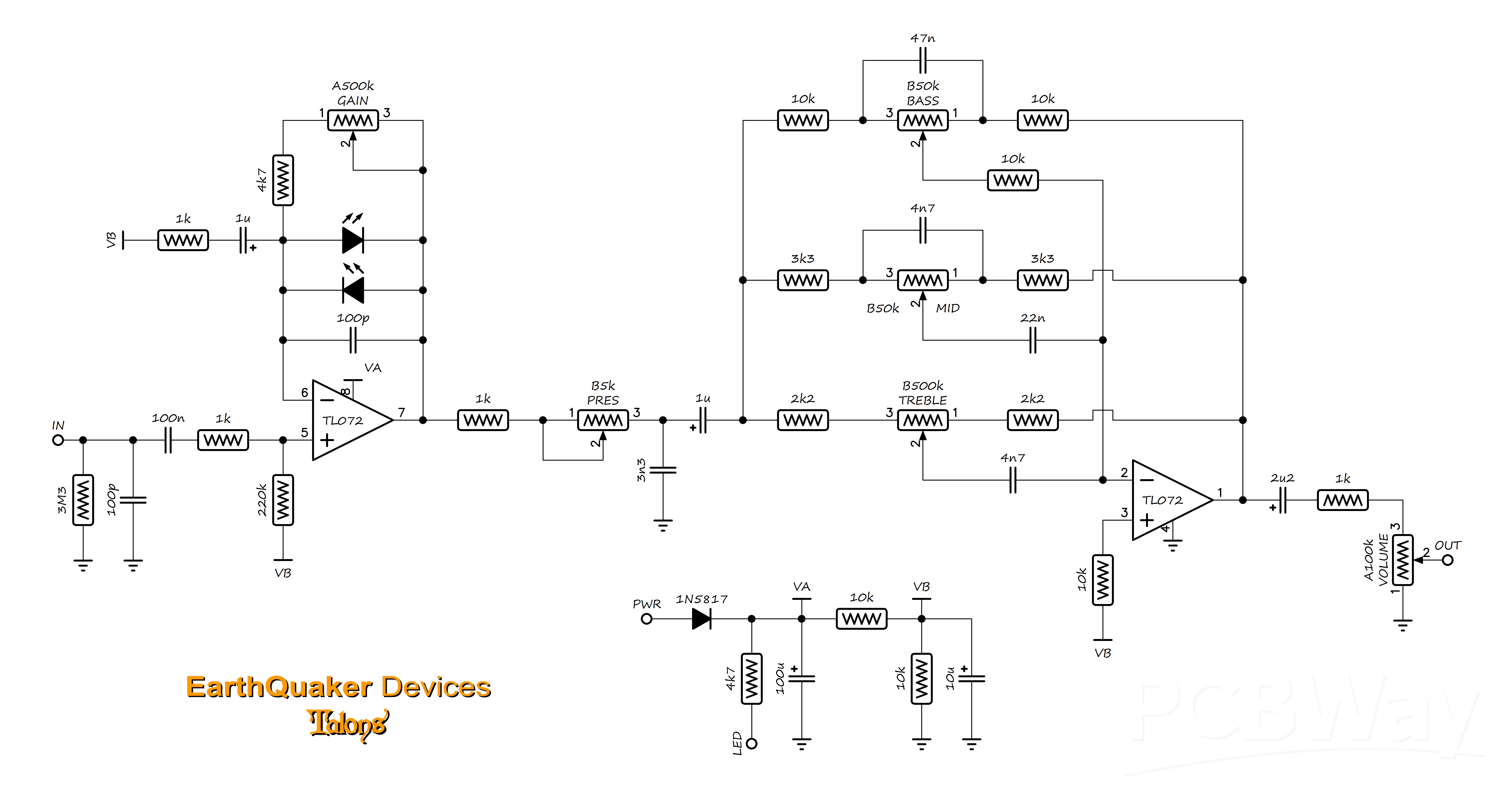

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 7
×6	10k	10k		read from the schematic by eye
×4	1k	1k		read from the schematic by eye
×2	4k7	4.7k		one is the LED resistor; read from the schematic by eye
×2	3k3	3.3k		read from the schematic by eye
×2	2k2	2.2k		read from the schematic by eye
×1	3M3	3.3M		read from the schematic by eye
×1	220k	220k		read from the schematic by eye
Capacitors 10
×2	100p	100p		read from the schematic by eye
×2	1u	1u		read from the schematic by eye
×2	4n7	4.7n		read from the schematic by eye
×1	100n	100n		read from the schematic by eye
×1	3n3	3.3n		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
×1	22n	22n		read from the schematic by eye
×1	2u2	2.2u		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
×1	10u	10u		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
ICs 1
×1	TL072	TL072		two sections of one dual; read from the schematic by eye
Potentiometers 6
Gain	A500k	A500k	Potentiometer	read from the schematic by eye
Pres	B5k	B5k	Potentiometer	read from the schematic by eye
Bass	B50k	B50k	Potentiometer	read from the schematic by eye
Mid	B50k	B50k	Potentiometer	read from the schematic by eye
Treble	B500k	B500k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
LEDs 1
×2	LED	LED		clipping LEDs; read from the schematic by eye
