Enclosure not stated · 3 knobs
Special Cranker
Based on the EarthQuaker Devices Special Cranker· 4 other boards clone it
- Category
- Distortion
- Price
- see vendorin stock
- Tags
- EQD, EQD, Special Cranker
From the vendor
The EarthQuaker Devices Special Cranker is an all-discrete analog distortion enhancement device designed to give your signal some extra grit and boost without drastically altering your tone and retaining all of the natural nuances and character of your amp.

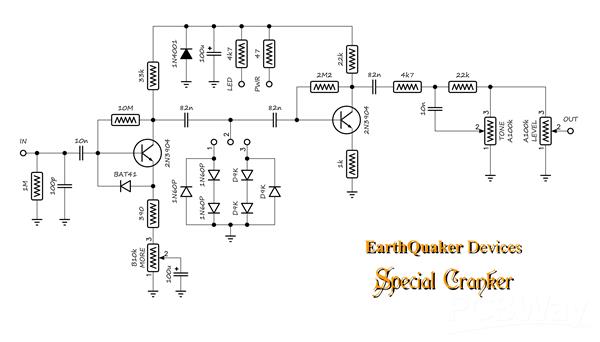

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 21 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 9 | ||||
| ×2 | 4k7 | 4.7k | read from the schematic by eye | |
| ×2 | 22k | 22k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 10M | 10M | read from the schematic by eye | |
| ×1 | 33k | 33k | read from the schematic by eye | |
| ×1 | 390 | 390 | read from the schematic by eye | |
| ×1 | 47 | 47 | read from the schematic by eye | |
| ×1 | 2M2 | 2.2M | read from the schematic by eye | |
| ×1 | 1k | 1k | read from the schematic by eye | |
| Capacitors 4 | ||||
| ×3 | 82n | 82n | read from the schematic by eye | |
| ×2 | 10n | 10n | read from the schematic by eye | |
| ×2 | 100u | 100u | read from the schematic by eye | |
| ×1 | 100p | 100p | read from the schematic by eye | |
| Diodes 4 | ||||
| ×1 | 1N4001 | 1N4001 | read from the schematic by eye | |
| ×1 | BAT41 | BAT41 | read from the schematic by eye | |
| ×3 | 1N60P | 1N60P | read from the schematic by eye | |
| ×3 | D9K | D9K | read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | 2N3904 | 2N3904 | read from the schematic by eye | |
| Potentiometers 3 | ||||
| More | B10k | B10k | Potentiometer | read from the schematic by eye |
| Tone | A100k | A100k | Potentiometer | read from the schematic by eye |
| Level | A100k | A100k | Potentiometer | read from the schematic by eye |
