Plumes
Based on the EarthQuaker Devices Plumes· 8 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- EQD, EQD, Plumes
Schematic

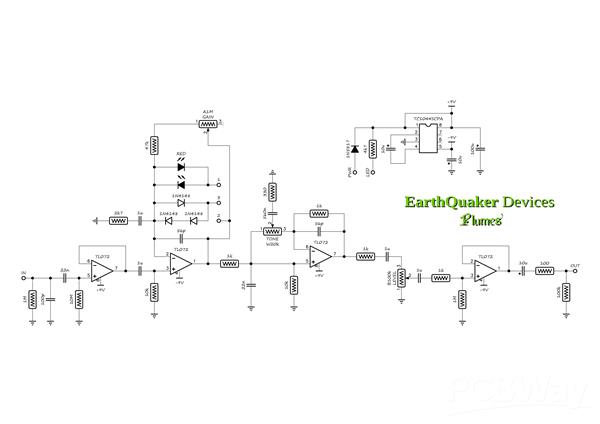

The schematic image is on the project page. Open it at PCBWay.
Parts list 28 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 2 values the reader of this schematic was not sure of
- image is only 600x424: most small values are best guesses (10M, 3k3, 220p, 51p x2, 22n, 220n, W10k, B100k)
- mode switch drawn only as pads
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 10 | ||||
| ×2 | 1M | 1M | read from the schematic by eye | |
| ×1 | 10M | 10M | value hard to read (low-resolution image); read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 3k3 | 3.3k | gain-leg resistor; label illegible at this resolution, read as 3k3; read from the schematic by eye | |
| ×4 | 1k | 1k | read from the schematic by eye | |
| ×1 | 330 | 330 | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 100 | 100 | read from the schematic by eye | |
| ×1 | 100k | 100k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 9 | ||||
| ×1 | 220p | 220p | input cap to ground; label illegible; read from the schematic by eye | |
| ×1 | 22n | 22n | read from the schematic by eye | |
| ×2 | 51p | 51p | feedback caps; labels illegible; read from the schematic by eye | |
| ×1 | 22n | 22n | tone shunt to ground; read as 22n; read from the schematic by eye | |
| ×1 | 220n | 220n | in series with 330 on tone wiper; label illegible; read from the schematic by eye | |
| ×4 | 1u | 1u | read from the schematic by eye | |
| ×1 | 10u | 10u | output; read from the schematic by eye | |
| ×2 | 10u | 10u | charge pump; read from the schematic by eye | |
| ×1 | 100u | 100u | read from the schematic by eye | |
| Diodes 2 | ||||
| ×3 | 1N4148 | 1N4148 | read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| ICs 2 | ||||
| ×2 | TL072 | TL072 | four op-amp sections drawn = two dual chips; read from the schematic by eye | |
| ×1 | TC1044SCPA | TC1044SCPA | charge pump; read from the schematic by eye | |
| Potentiometers 3 | ||||
| Gain | A1M | A1M | Potentiometer | read from the schematic by eye |
| Tone | W10k | W10k | Potentiometer | taper/value unclear; read from the schematic by eye |
| Level | B100k | B100k | Potentiometer | value unclear; read from the schematic by eye |
| Switches 1 | ||||
| Mode | 3-way | 3-WAY | drawn only as pads 1/2/3 selecting the clipping options; read from the schematic by eye | |
| LEDs 1 | ||||
| ×2 | LED | LED | clipping LEDs, one marked RED; read from the schematic by eye | |
