Enclosure not stated · 3 knobs

Black Ash Fuzz

Based on the EarthQuaker Devices Black Ash· 10 other boards clone it

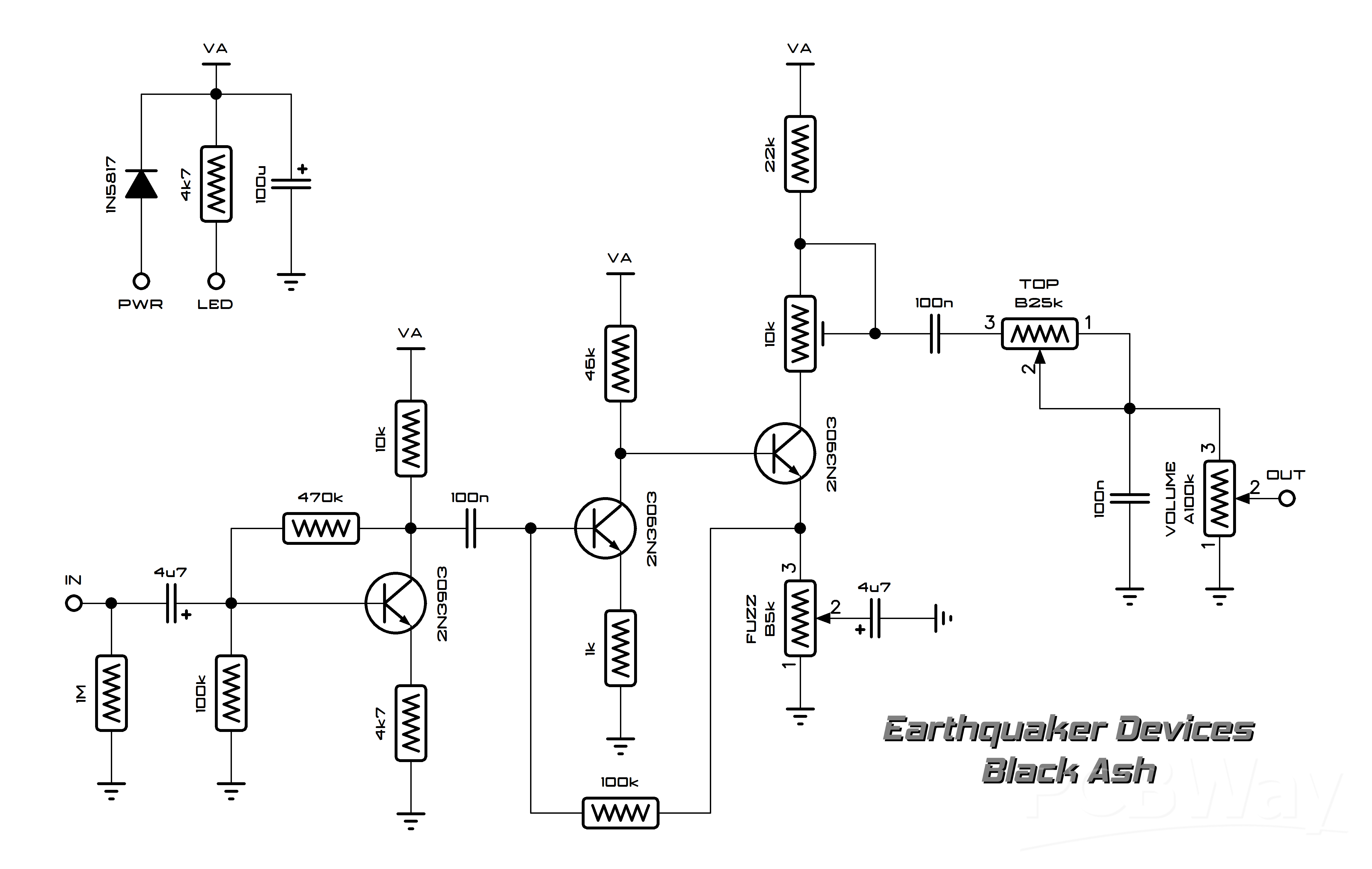

Schematic

The schematic image is on the project page. Open it at PCBWay.

Check before you build · 2 values the reader of this schematic was not sure of

Ref	Value	Normalized	Type	Notes
Resistors 8
×2	4k7	4.7k		read from the schematic by eye
×2	100k	100k		read from the schematic by eye
×1	1M	1M		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	10k	10k		read from the schematic by eye
×1	46k	46k		value drawn as 46k; read from the schematic by eye
×1	1k	1k		read from the schematic by eye
×1	22k	22k		read from the schematic by eye
Capacitors 3
×1	100u	100u		read from the schematic by eye
×2	4u7	4.7u		read from the schematic by eye
×3	100n	100n		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×3	2N3903	2N3903		read from the schematic by eye
Potentiometers 3
Top	B25k	B25k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
Fuzz	B5k	B5k	Potentiometer	read from the schematic by eye
Trimmers 1
×1	10k	10k		drawn as a resistor with a flat wiper tap on the Q3 collector; read as a trimmer; read from the schematic by eye
