Enclosure not stated · 5 knobs
Bit Commander
Based on the EarthQuaker Devices Bit Commander· 7 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- EQD
From the vendor
EQD - Bit Commander (PedalPCB)

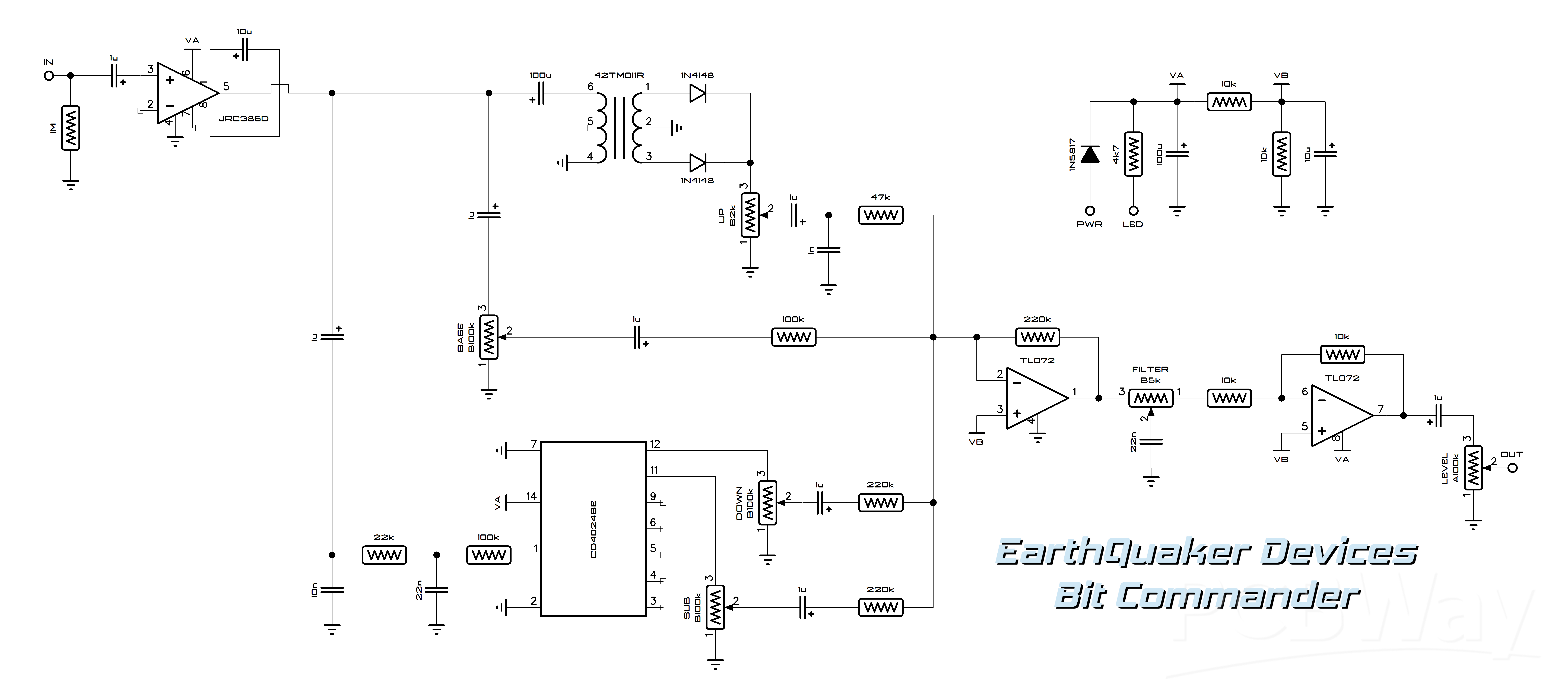

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 25 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 7 | ||||
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×3 | 220k | 220k | read from the schematic by eye | |
| ×2 | 100k | 100k | read from the schematic by eye | |
| ×1 | 47k | 47k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×4 | 10k | 10k | two in the output filter/amp, two in the bias supply; read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 6 | ||||
| ×2 | 100u | 100u | electrolytic; read from the schematic by eye | |
| ×2 | 10u | 10u | electrolytic; read from the schematic by eye | |
| ×8 | 1u | 1u | electrolytic; read from the schematic by eye | |
| ×2 | 22n | 22n | read from the schematic by eye | |
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4148 | 1N4148 | full-wave rectifier for the octave-up; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| ICs 3 | ||||
| ×1 | JRC386D | JRC386D | LM386 input amp; read from the schematic by eye | |
| ×1 | CD4024BE | CD4024BE | divider for the octave-down and sub; read from the schematic by eye | |
| ×1 | TL072 | TL072 | dual op-amp, both halves used; read from the schematic by eye | |
| Potentiometers 6 | ||||
| Base | B100k | B100k | Potentiometer | drawn BASE: clean (dry) level; read from the schematic by eye |
| Up | B2k | B2k | Potentiometer | read from the schematic by eye |
| Down | B100k | B100k | Potentiometer | read from the schematic by eye |
| Sub | B100k | B100k | Potentiometer | read from the schematic by eye |
| Filter | B5k | B5k | Potentiometer | read from the schematic by eye |
| Level | A100k | A100k | Potentiometer | read from the schematic by eye |
| Other 1 | ||||
| ×1 | 42TM011R | 42TM011R | center-tapped audio transformer for the octave-up; read from the schematic by eye | |
