Enclosure not stated · 4 knobs

Blisterlily

Based on the El Musico Loco Blisterlily· 3 other boards clone it

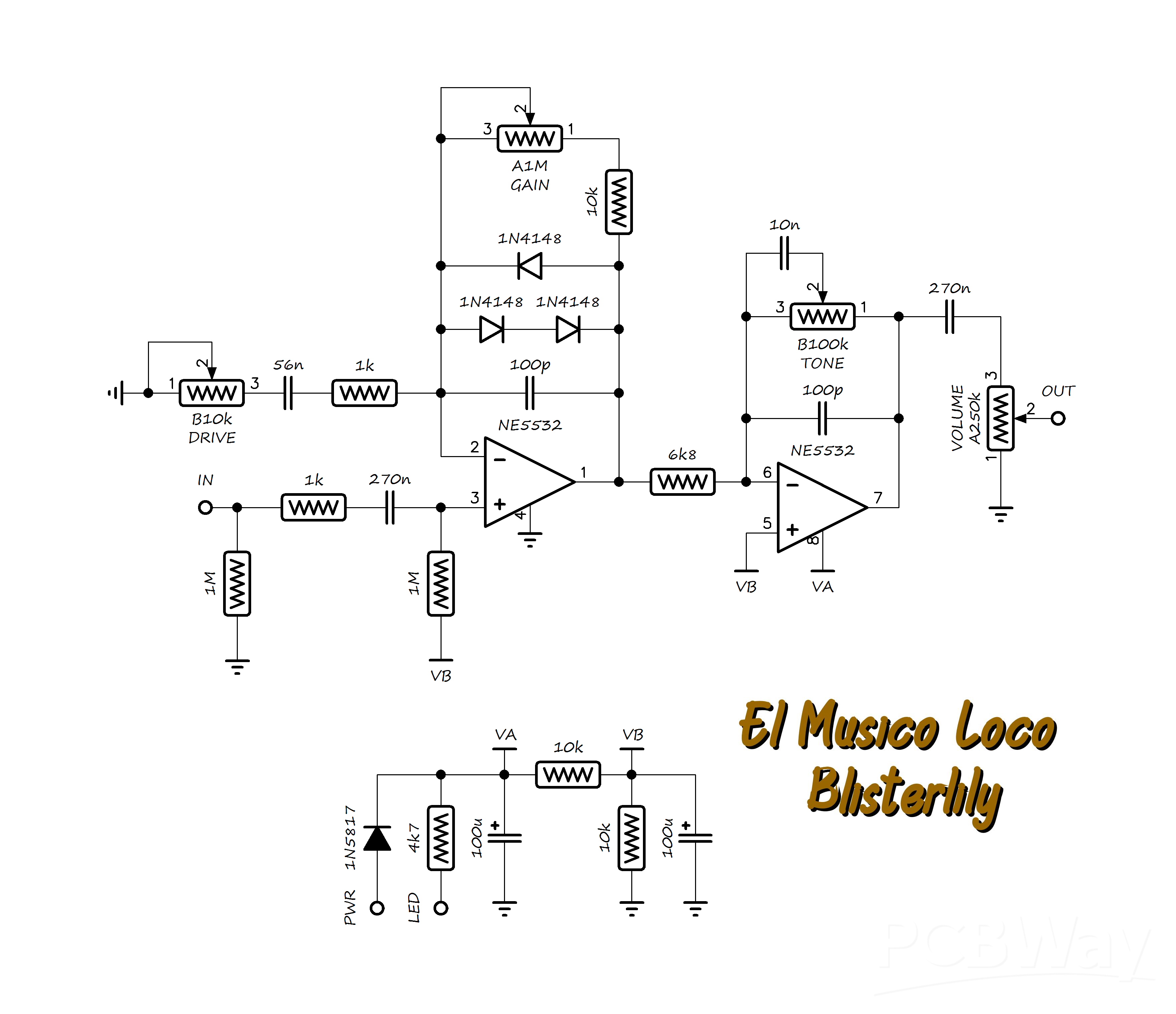

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 5
×2	1k	1k		read from the schematic by eye
×1	4k7	4.7k		LED current-limiting resistor; read from the schematic by eye
×1	6k8	6.8k		read from the schematic by eye
×3	10k	10k		read from the schematic by eye
×2	1M	1M		read from the schematic by eye
Capacitors 5
×2	100p	100p		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
×1	56n	56n		read from the schematic by eye
×2	270n	270n		read from the schematic by eye
×2	100u	100u		electrolytic; read from the schematic by eye
Diodes 2
×3	1N4148	1N4148		asymmetric clipping in the feedback loop (one against two); read from the schematic by eye
×1	1N5817	1N5817		read from the schematic by eye
ICs 1
×1	NE5532	NE5532		both halves used; read from the schematic by eye
Potentiometers 4
Drive	B10k	B10k	Potentiometer	wired as variable resistor to ground; read from the schematic by eye
Gain	A1M	A1M	Potentiometer	wired as variable resistor; read from the schematic by eye
Tone	B100k	B100k	Potentiometer	read from the schematic by eye
Volume	A250k	A250k	Potentiometer	read from the schematic by eye
