Enclosure not stated · 1 knob
Muff Fuzz
Based on the Electro-Harmonix Muff Fuzz· 14 other boards clone it

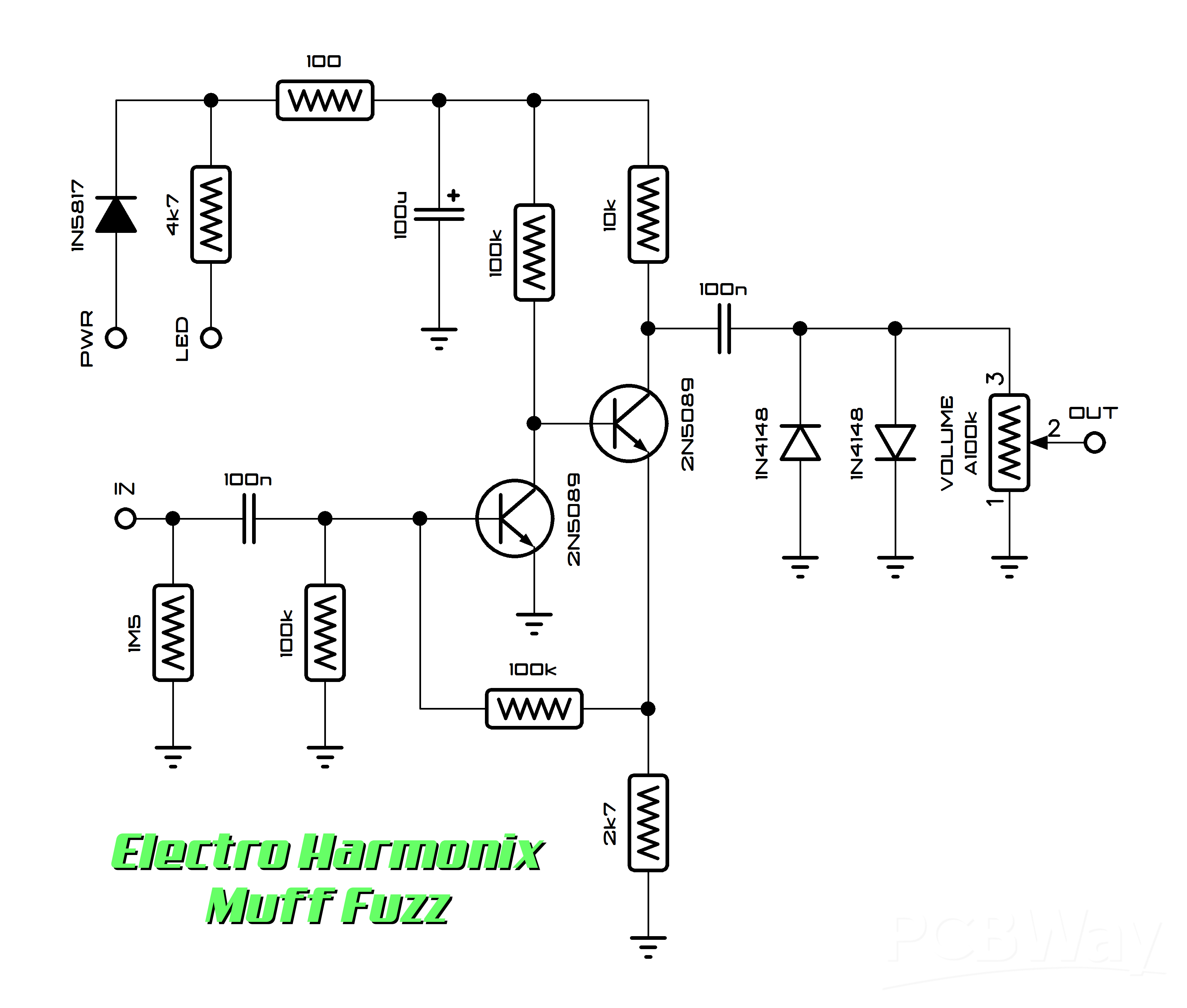

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 12 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 6 | ||||
| ×3 | 100k | 100k | read from the schematic by eye | |
| ×1 | 1M5 | 1.5M | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 2k7 | 2.7k | read from the schematic by eye | |
| ×1 | 100 | 100 | supply filter; read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | LED resistor; read from the schematic by eye | |
| Capacitors 2 | ||||
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 100u | 100u | electrolytic; read from the schematic by eye | |
| Diodes 2 | ||||
| ×2 | 1N4148 | 1N4148 | clipping to ground; read from the schematic by eye | |
| ×1 | 1N5817 | 1N5817 | reverse polarity; read from the schematic by eye | |
| Transistors 1 | ||||
| ×2 | 2N5089 | 2N5089 | read from the schematic by eye | |
| Potentiometers 1 | ||||
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
