Enclosure not stated · 3 knobs

Lizard Queen

Based on the Electro-Harmonix Lizard Queen· 8 other boards clone it

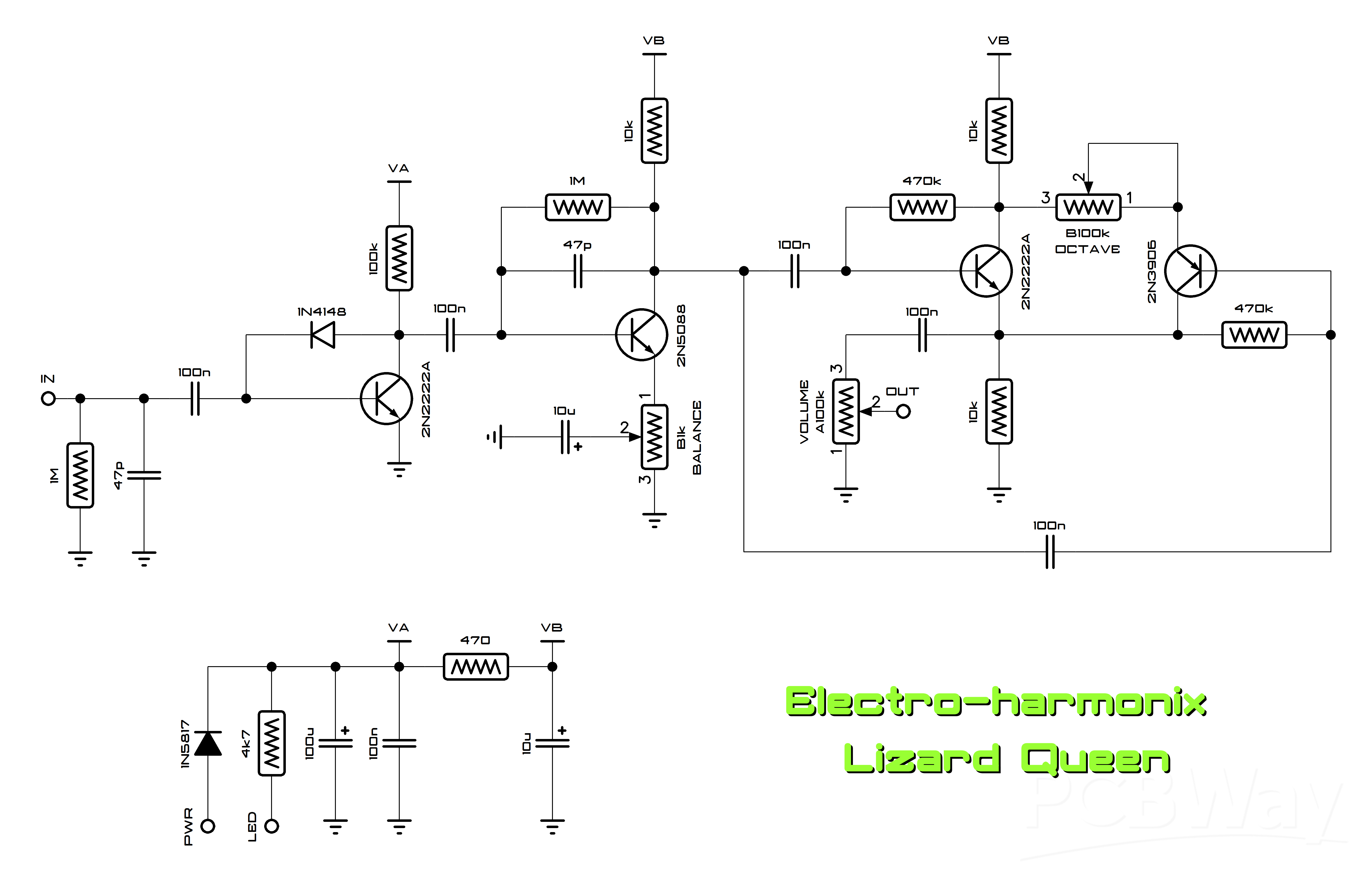

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×1	470	470		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×3	10k	10k		read from the schematic by eye
×1	100k	100k		read from the schematic by eye
×2	470k	470k		read from the schematic by eye
×2	1M	1M		read from the schematic by eye
Capacitors 4
×2	47p	47p		read from the schematic by eye
×6	100n	100n		read from the schematic by eye
×2	10u	10u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
Diodes 2
×1	1N4148	1N4148		read from the schematic by eye
×1	1N5817	1N5817		read from the schematic by eye
Transistors 3
×2	2N2222A	2N2222A		read from the schematic by eye
×1	2N5088	2N5088		read from the schematic by eye
×1	2N3906	2N3906		read from the schematic by eye
Potentiometers 3
Balance	B1k	B1k	Potentiometer	read from the schematic by eye
Octave	B100k	B100k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
