Enclosure not stated · 3 knobs

Stellar Drive

Based on the DMB Stellar Drive· 3 other boards clone it

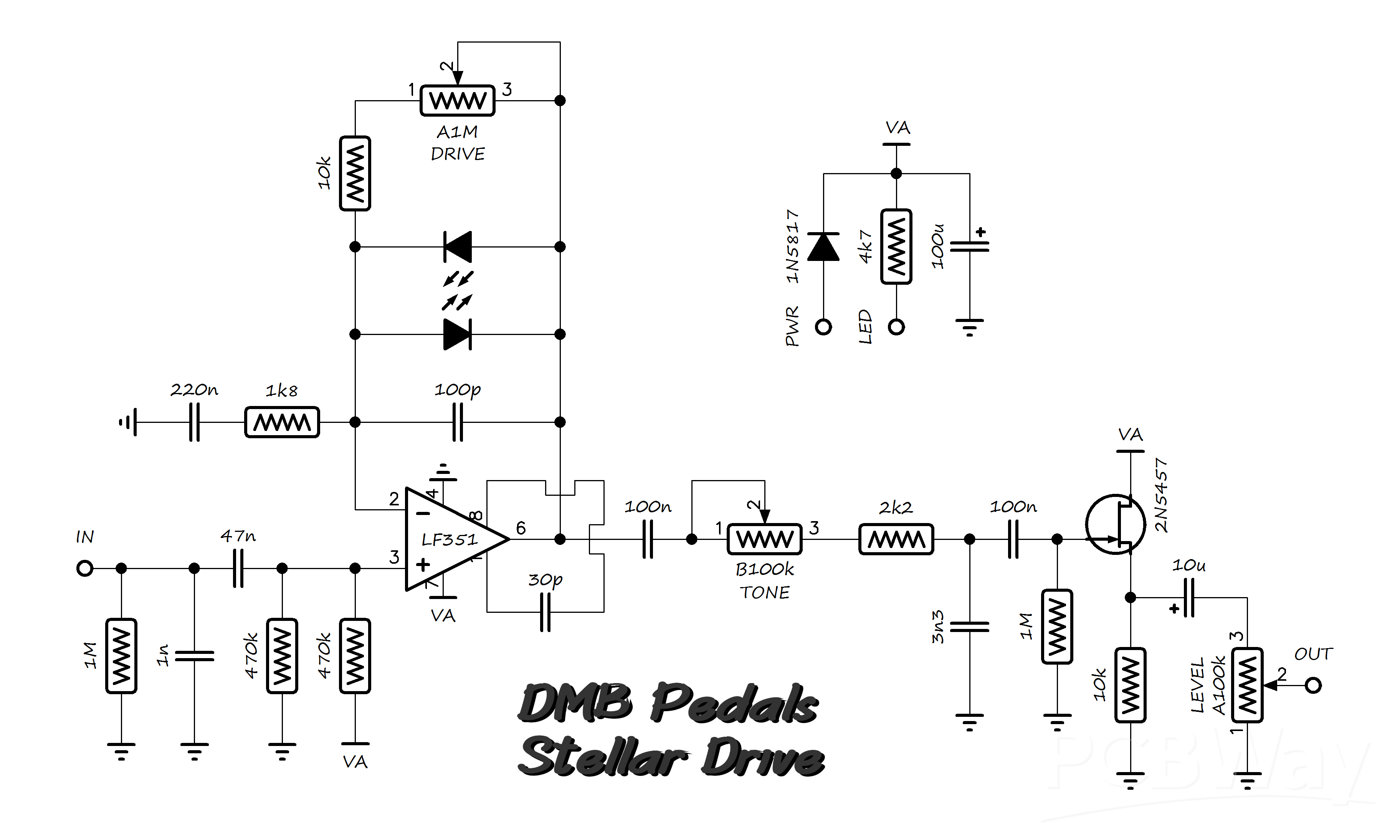

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 6
×2	1M	1M		read from the schematic by eye
×2	470k	470k		read from the schematic by eye
×2	10k	10k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
×1	2k2	2.2k		read from the schematic by eye
×1	1k8	1.8k		read from the schematic by eye
Capacitors 9
×2	100n	100n		read from the schematic by eye
×1	220n	220n		read from the schematic by eye
×1	47n	47n		read from the schematic by eye
×1	3n3	3.3n		read from the schematic by eye
×1	1n	1n		read from the schematic by eye
×1	100p	100p		read from the schematic by eye
×1	30p	30p		read from the schematic by eye
×1	10u	10u		electrolytic; read from the schematic by eye
×1	100u	100u		electrolytic; read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×1	2N5457	2N5457		JFET source-follower output buffer; read from the schematic by eye
ICs 1
×1	LF351	LF351		read from the schematic by eye
Potentiometers 3
Drive	A1M	A1M	Potentiometer	read from the schematic by eye
Tone	B100k	B100k	Potentiometer	read from the schematic by eye
Level	A100k	A100k	Potentiometer	read from the schematic by eye
LEDs 1
×2	LED	LED		clipping LEDs in the feedback loop, no colour drawn; read from the schematic by eye
