Enclosure not stated · 2 knobs
Interstellar
Based on the Death By Audio Interstellar Overdriver· 5 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Death by Audio

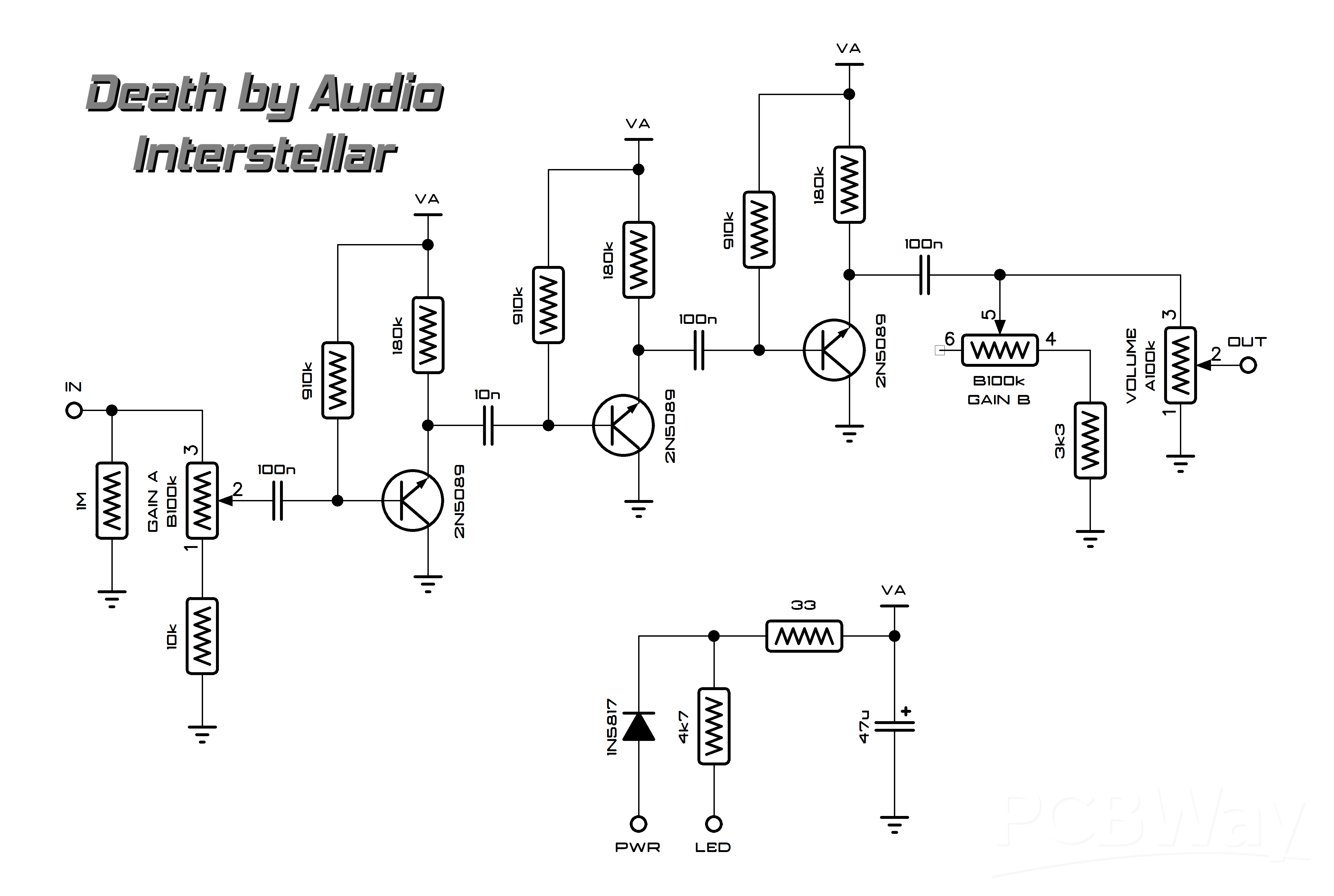

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 14 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 1 value the reader of this schematic was not sure of
- Gain A / Gain B read as one dual-gang B100k from the 1-6 pin numbering; could be two separate B100k pots
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 7 | ||||
| ×3 | 910k | 910k | read from the schematic by eye | |
| ×3 | 180k | 180k | read from the schematic by eye | |
| ×1 | 1M | 1M | read from the schematic by eye | |
| ×1 | 10k | 10k | read from the schematic by eye | |
| ×1 | 4k7 | 4.7k | read from the schematic by eye | |
| ×1 | 3k3 | 3.3k | read from the schematic by eye | |
| ×1 | 33 | 33 | read from the schematic by eye | |
| Capacitors 3 | ||||
| ×3 | 100n | 100n | read from the schematic by eye | |
| ×1 | 10n | 10n | read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic; read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×3 | 2N5089 | 2N5089 | read from the schematic by eye | |
| Potentiometers 2 | ||||
| Gain | B100k | B100k | Potentiometer, dual | drawn as Gain A (pins 1-3) and Gain B (pins 4-6): one dual-gang B100k; read from the schematic by eye |
| Volume | A100k | A100k | Potentiometer | read from the schematic by eye |
