Enclosure not stated · 3 knobs

Octapussy

Based on the Catalinbread Octapussy· 2 other boards clone it

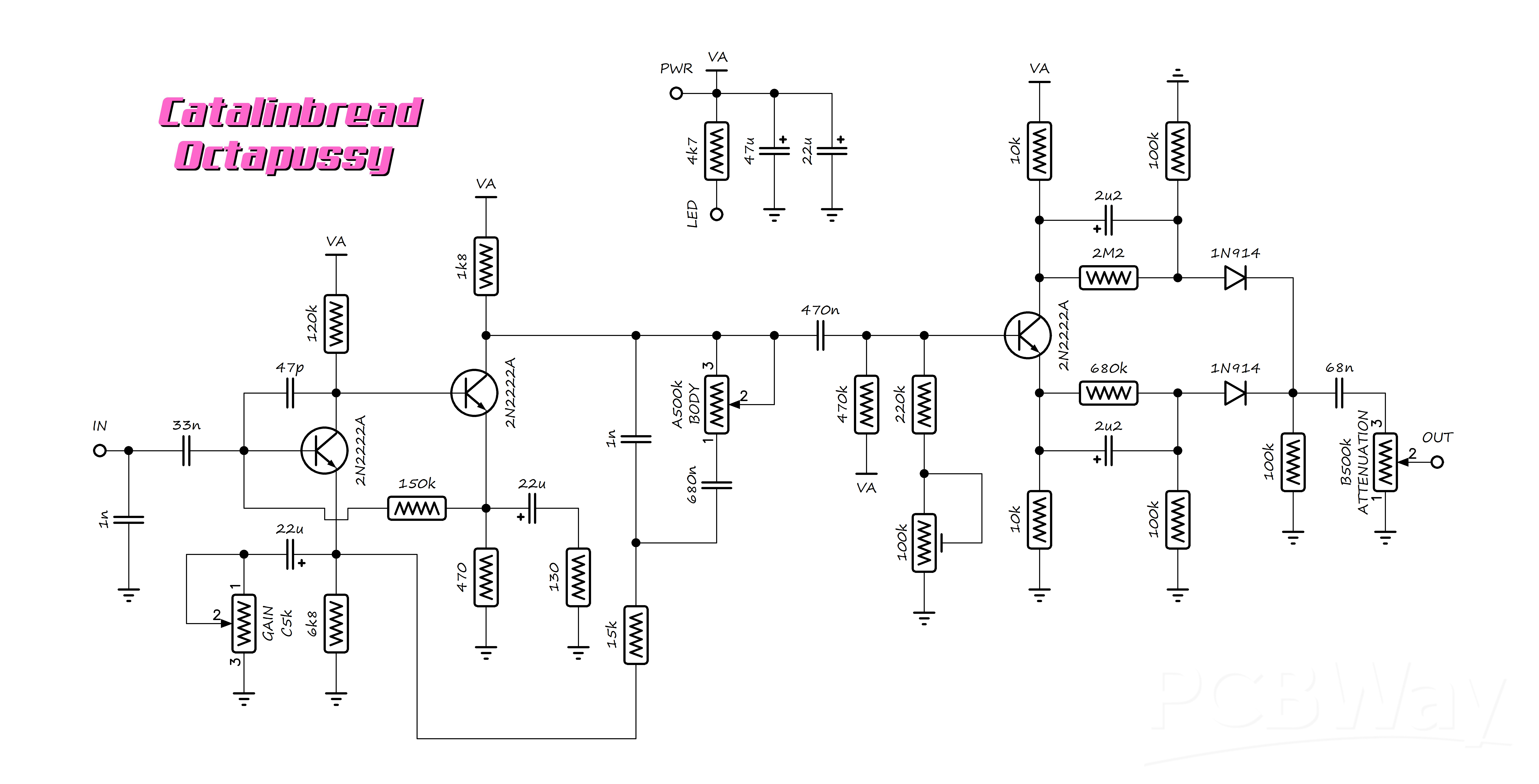

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 14
×3	100k	100k		read from the schematic by eye
×2	10k	10k		read from the schematic by eye
×1	6k8	6.8k		read from the schematic by eye
×1	120k	120k		read from the schematic by eye
×1	150k	150k		read from the schematic by eye
×1	470	470		read from the schematic by eye
×1	130	130		read from the schematic by eye
×1	1k8	1.8k		read from the schematic by eye
×1	15k	15k		read from the schematic by eye
×1	470k	470k		read from the schematic by eye
×1	220k	220k		read from the schematic by eye
×1	680k	680k		read from the schematic by eye
×1	2M2	2.2M		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
Capacitors 9
×2	1n	1n		read from the schematic by eye
×3	22u	22u		read from the schematic by eye
×2	2u2	2.2u		read from the schematic by eye
×1	33n	33n		read from the schematic by eye
×1	47p	47p		read from the schematic by eye
×1	680n	680n		read from the schematic by eye
×1	470n	470n		read from the schematic by eye
×1	68n	68n		read from the schematic by eye
×1	47u	47u		read from the schematic by eye
Diodes 1
×2	1N914	1N914		read from the schematic by eye
Transistors 1
×3	2N2222A	2N2222A		read from the schematic by eye
Potentiometers 3
Gain	C5k	C5k	Potentiometer	read from the schematic by eye
Body	A500k	A500k	Potentiometer	read from the schematic by eye
Attenuation	B500k	B500k	Potentiometer	read from the schematic by eye
Trimmers 1
×1	100k	100k		drawn as a variable resistor (T-bar wiper) wired as a rheostat on the phase-splitter bias; read from the schematic by eye
