Enclosure not stated · 2 knobs
Merkin Fuzz
Based on the Catalinbread Merkin Fuzz· 5 other boards clone it

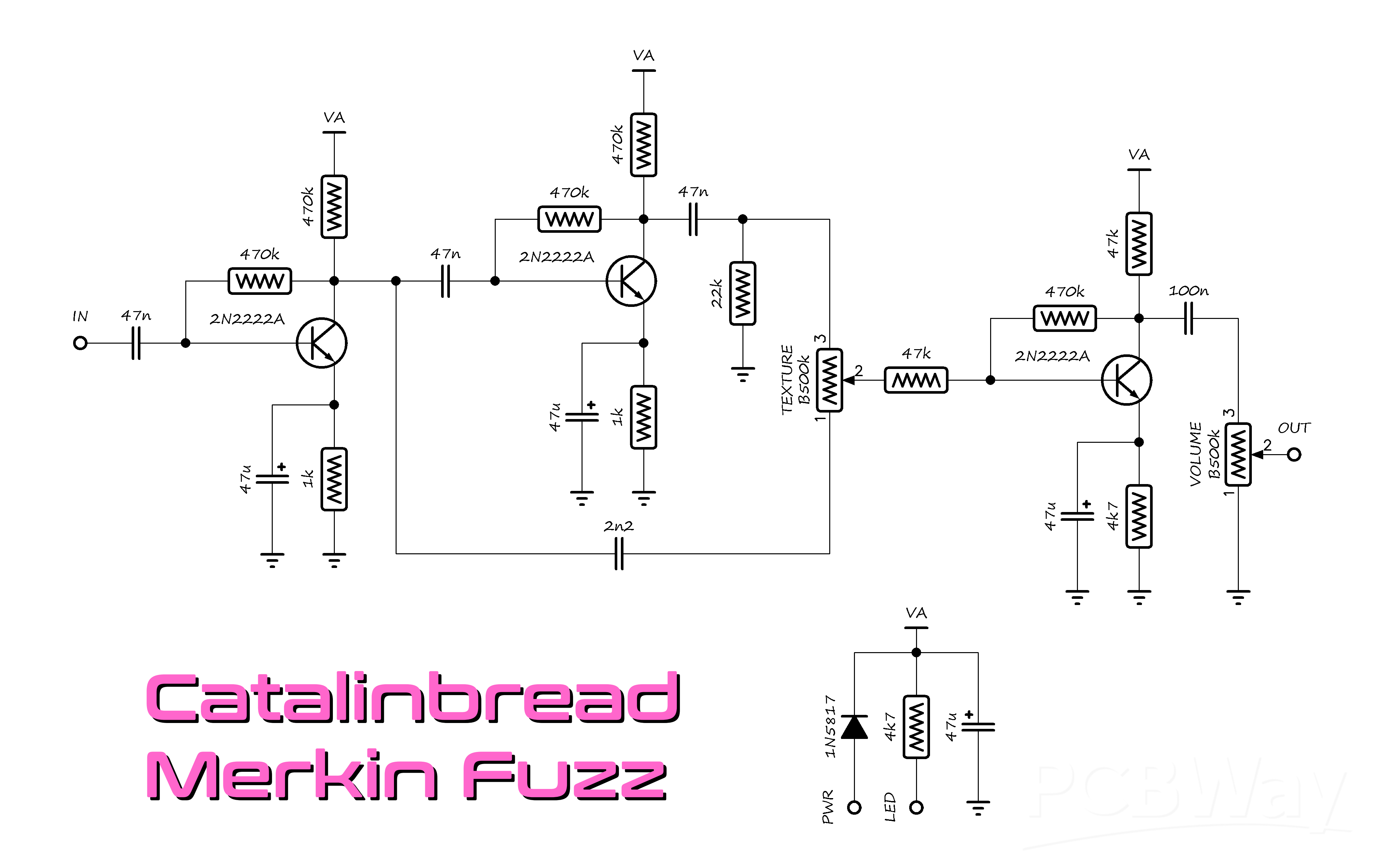

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 13 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 5 | ||||
| ×5 | 470k | 470k | read from the schematic by eye | |
| ×2 | 1k | 1k | read from the schematic by eye | |
| ×1 | 22k | 22k | read from the schematic by eye | |
| ×2 | 47k | 47k | read from the schematic by eye | |
| ×2 | 4k7 | 4.7k | read from the schematic by eye | |
| Capacitors 4 | ||||
| ×3 | 47n | 47n | read from the schematic by eye | |
| ×4 | 47u | 47u | read from the schematic by eye | |
| ×1 | 2n2 | 2.2n | read from the schematic by eye | |
| ×1 | 100n | 100n | read from the schematic by eye | |
| Diodes 1 | ||||
| ×1 | 1N5817 | 1N5817 | read from the schematic by eye | |
| Transistors 1 | ||||
| ×3 | 2N2222A | 2N2222A | read from the schematic by eye | |
| Potentiometers 2 | ||||
| Texture | B500k | B500k | Potentiometer | read from the schematic by eye |
| Volume | B500k | B500k | Potentiometer | read from the schematic by eye |
Other boards based on the Catalinbread Merkin Fuzz
- Catalinbread Merkin Fuzz Dirtbox Layouts
- Catalinbread Merkin Fuzz Effects Layouts (blog)
- Merky Fuzz Fuzz Dog · 1590B · £30.00
- Toupee Fuzz PedalPCB · 125B · $8.00
- Catalinbread Merkin Fuzz Tagboard Effects
