Enclosure not stated · 4 knobs
Karma Suture
Based on the Catalinbread Karma Suture· 6 other boards clone it
- Category
- Other
- Price
- see vendorin stock
- Tags
- Catalinbread, Catalinbread, Karma Suture

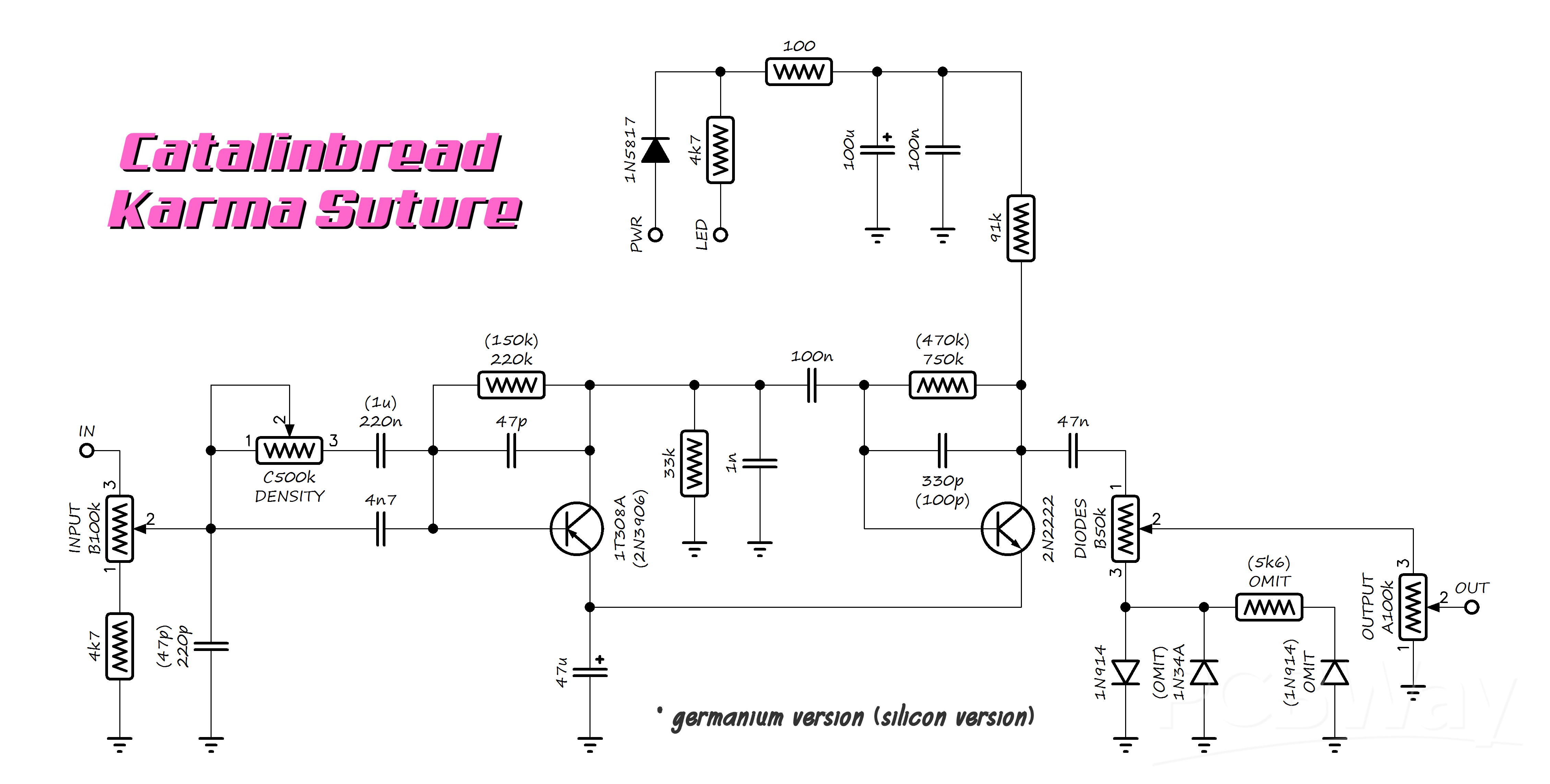

Schematic
The schematic image is on the project page. Open it at PCBWay.
Parts list 27 rows
Report a wrong parseGot parts in a drawer? See what you can build with them.
Check before you build · 1 value the reader of this schematic was not sure of
- Two builds on one drawing: rows give the germanium values, silicon alternatives in parentheses noted
| Ref | Value | Normalized | Type | Notes |
|---|---|---|---|---|
| Resistors 7 | ||||
| ×1 | 750k | 750k | germanium version; 470k in the silicon version; read from the schematic by eye | |
| ×1 | 220k | 220k | germanium version; 150k in the silicon version; read from the schematic by eye | |
| ×1 | 91k | 91k | read from the schematic by eye | |
| ×1 | 33k | 33k | read from the schematic by eye | |
| ×2 | 4k7 | 4.7k | one is the LED resistor; read from the schematic by eye | |
| ×1 | 100 | 100 | supply series resistor; read from the schematic by eye | |
| ×1 | 5k6 | 5.6k | silicon version only; marked OMIT for germanium; read from the schematic by eye | |
| Capacitors 10 | ||||
| ×1 | 100u | 100u | electrolytic, supply filter; read from the schematic by eye | |
| ×1 | 47u | 47u | electrolytic, emitter bypass; read from the schematic by eye | |
| ×1 | 220n | 220n | germanium version; 1u in the silicon version; read from the schematic by eye | |
| ×2 | 100n | 100n | read from the schematic by eye | |
| ×1 | 47n | 47n | read from the schematic by eye | |
| ×1 | 4n7 | 4.7n | read from the schematic by eye | |
| ×1 | 1n | 1n | read from the schematic by eye | |
| ×1 | 330p | 330p | germanium version; 100p in the silicon version; read from the schematic by eye | |
| ×1 | 220p | 220p | germanium version; 47p in the silicon version; read from the schematic by eye | |
| ×1 | 47p | 47p | read from the schematic by eye | |
| Diodes 4 | ||||
| ×1 | 1N5817 | 1N5817 | reverse-polarity protection; read from the schematic by eye | |
| ×1 | 1N914 | 1N914 | clipping; read from the schematic by eye | |
| ×1 | 1N34A | 1N34A | clipping, germanium version; omitted in the silicon version; read from the schematic by eye | |
| ×1 | 1N914 | 1N914 | clipping, silicon version only (with the 5k6); OMIT for germanium; read from the schematic by eye | |
| Transistors 2 | ||||
| ×1 | 1T308A | 1T308A | germanium version; 2N3906 in the silicon version; read from the schematic by eye | |
| ×1 | 2N2222 | 2N2222 | read from the schematic by eye | |
| Potentiometers 4 | ||||
| Input | B100k | B100k | Potentiometer | read from the schematic by eye |
| Density | C500k | C500k | Potentiometer | read from the schematic by eye |
| Diodes | B50k | B50k | Potentiometer | read from the schematic by eye |
| Output | A100k | A100k | Potentiometer | read from the schematic by eye |
