Enclosure not stated · 4 knobs

Lucky Number

Based on the Basic Audio Lucky Number· 5 other boards clone it

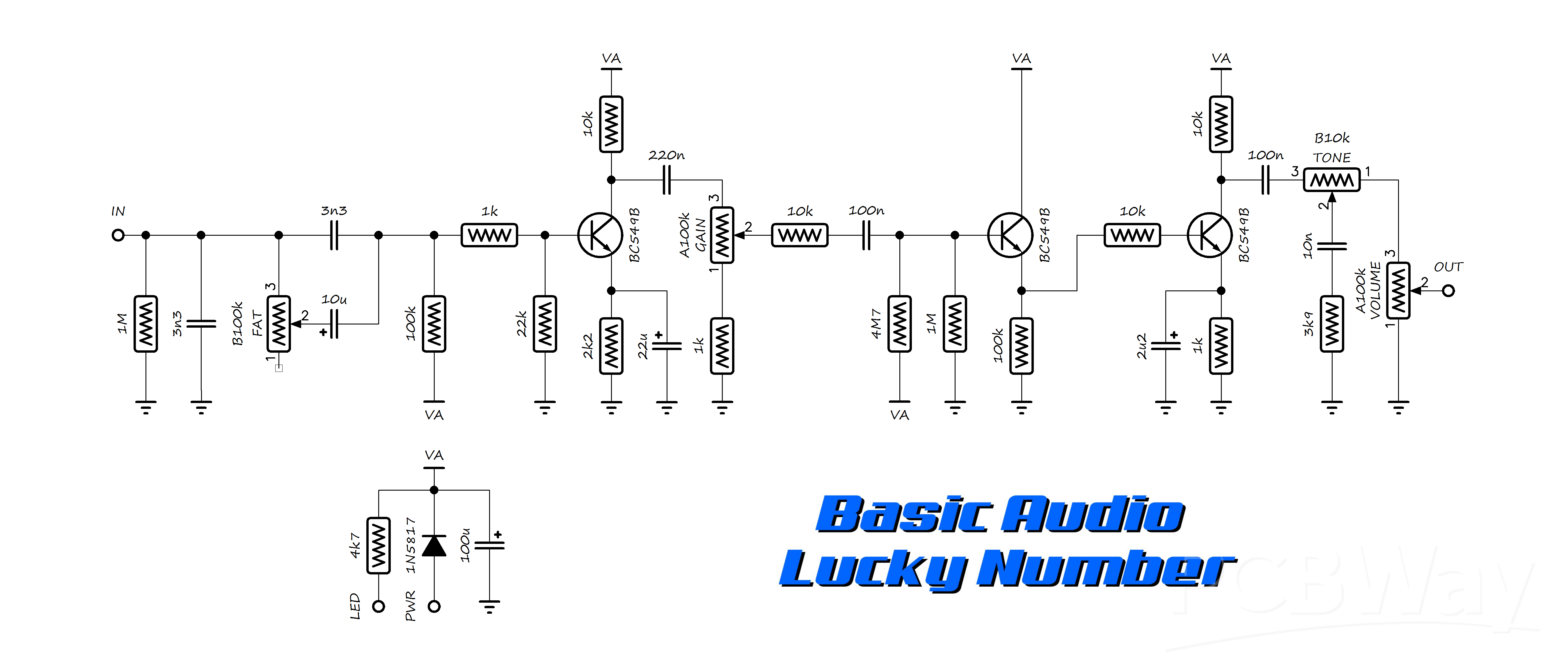

Schematic

The schematic image is on the project page. Open it at PCBWay.

Ref	Value	Normalized	Type	Notes
Resistors 9
×4	10k	10k		read from the schematic by eye
×3	1k	1k		read from the schematic by eye
×2	1M	1M		read from the schematic by eye
×2	100k	100k		read from the schematic by eye
×1	22k	22k		read from the schematic by eye
×1	2k2	2.2k		read from the schematic by eye
×1	4M7	4.7M		read from the schematic by eye
×1	3k9	3.9k		read from the schematic by eye
×1	4k7	4.7k		read from the schematic by eye
Capacitors 8
×2	3n3	3.3n		read from the schematic by eye
×2	100n	100n		read from the schematic by eye
×1	220n	220n		read from the schematic by eye
×1	10n	10n		read from the schematic by eye
×1	10u	10u		read from the schematic by eye
×1	22u	22u		read from the schematic by eye
×1	2u2	2.2u		read from the schematic by eye
×1	100u	100u		read from the schematic by eye
Diodes 1
×1	1N5817	1N5817		read from the schematic by eye
Transistors 1
×3	BC549B	BC549B		read from the schematic by eye
Potentiometers 4
Fat	B100k	B100k	Potentiometer	read from the schematic by eye
Gain	A100k	A100k	Potentiometer	read from the schematic by eye
Tone	B10k	B10k	Potentiometer	read from the schematic by eye
Volume	A100k	A100k	Potentiometer	read from the schematic by eye
